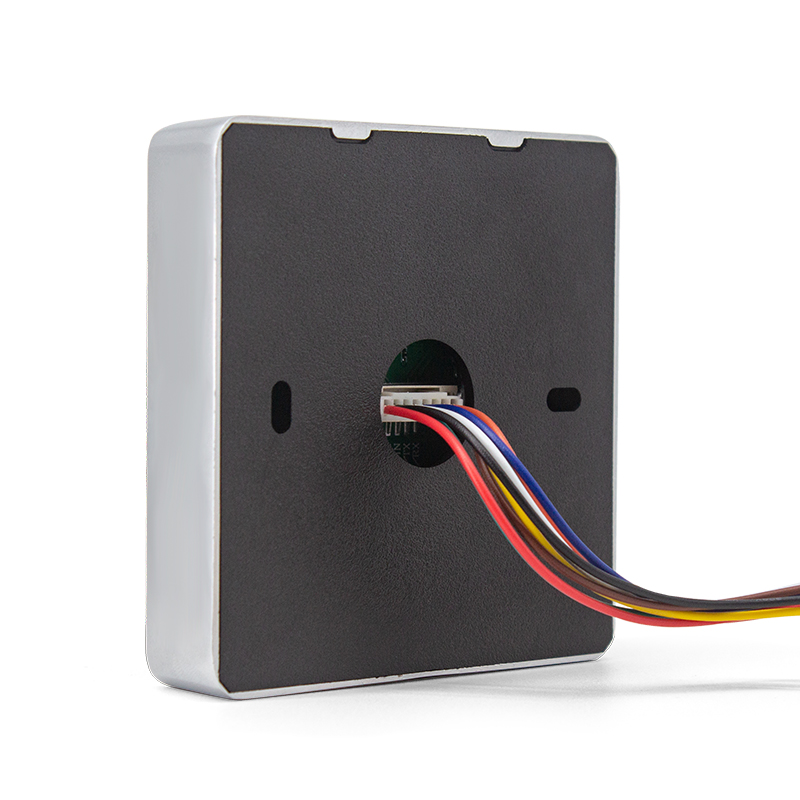

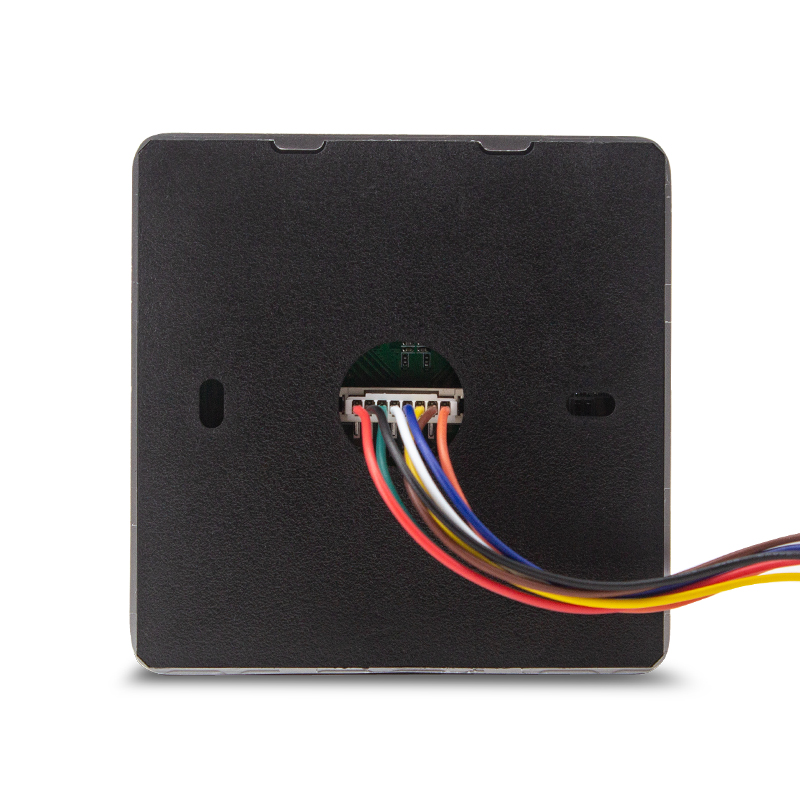

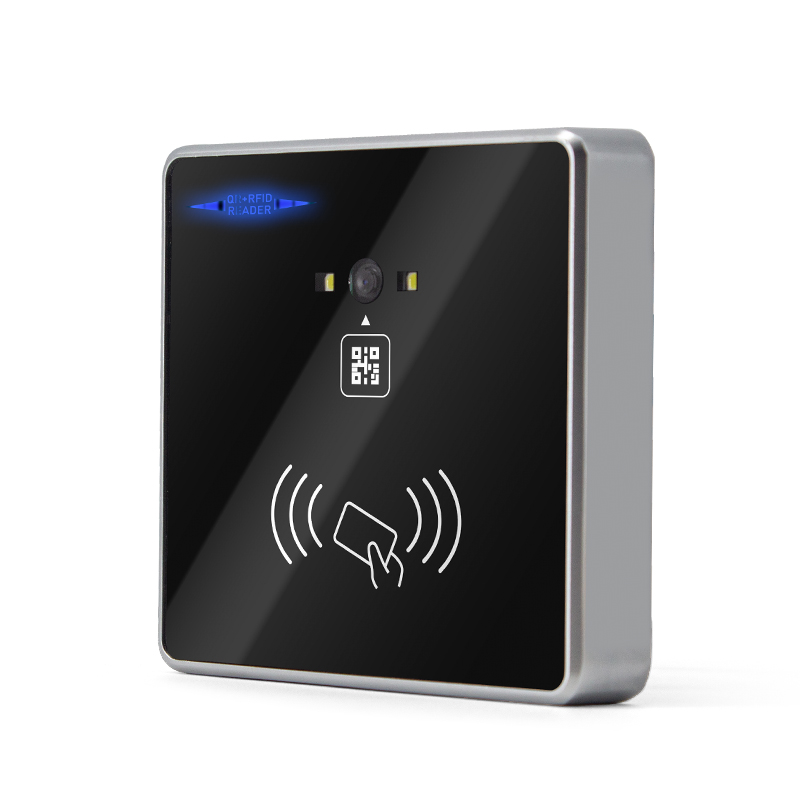

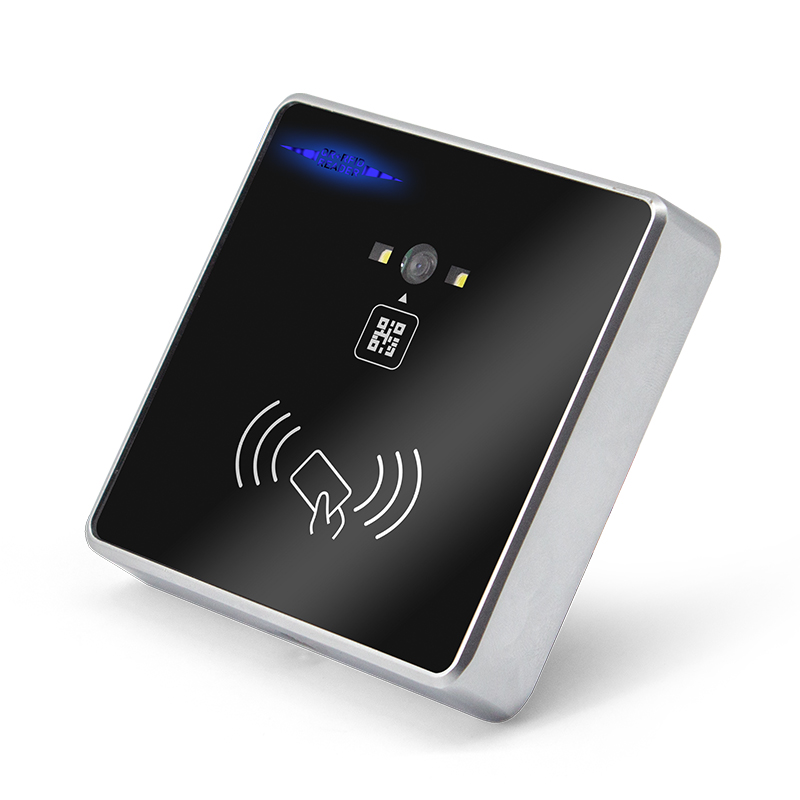

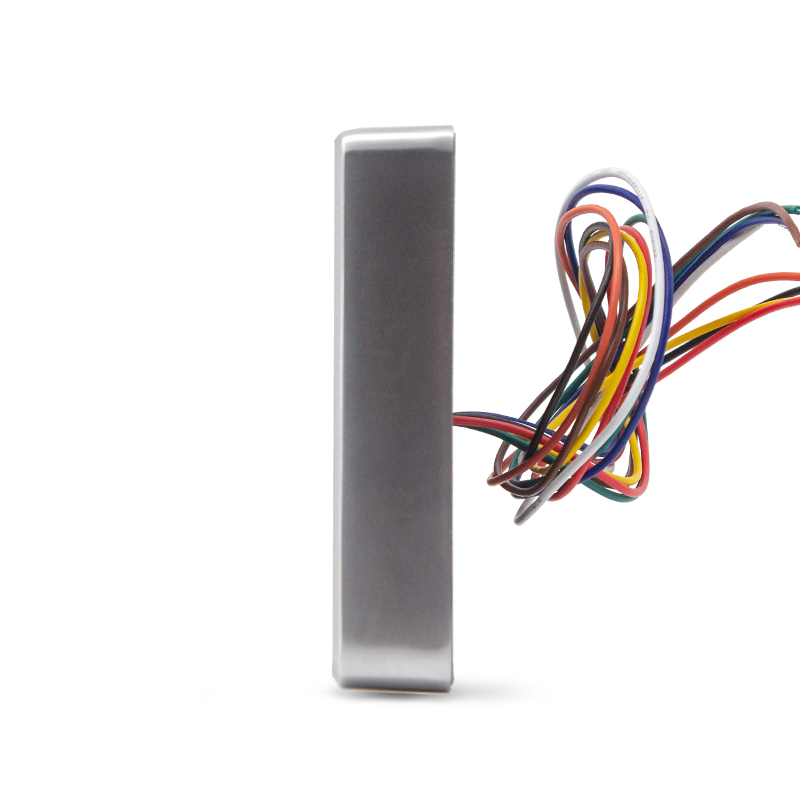

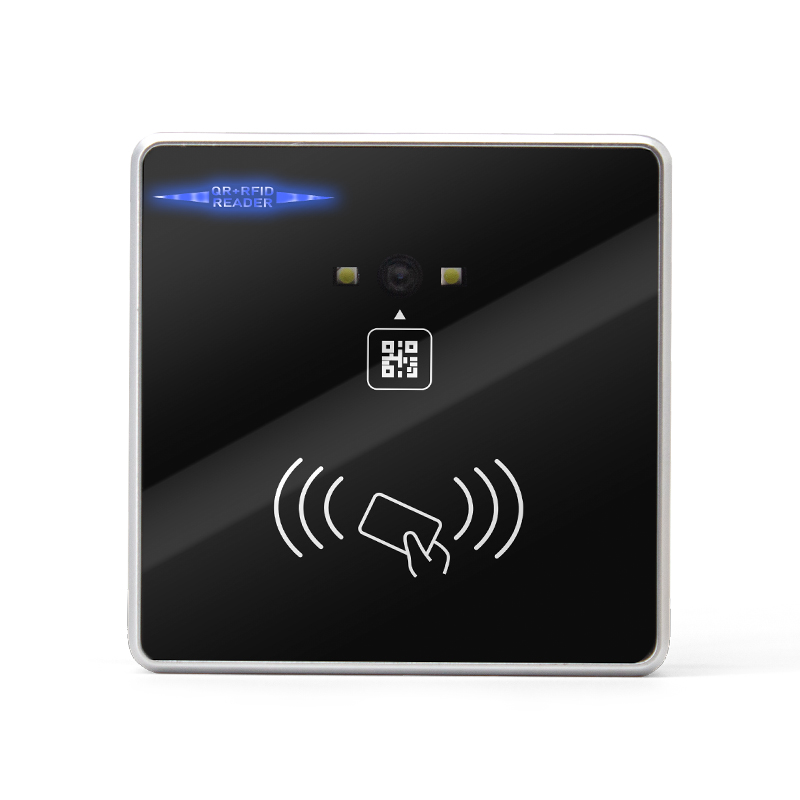

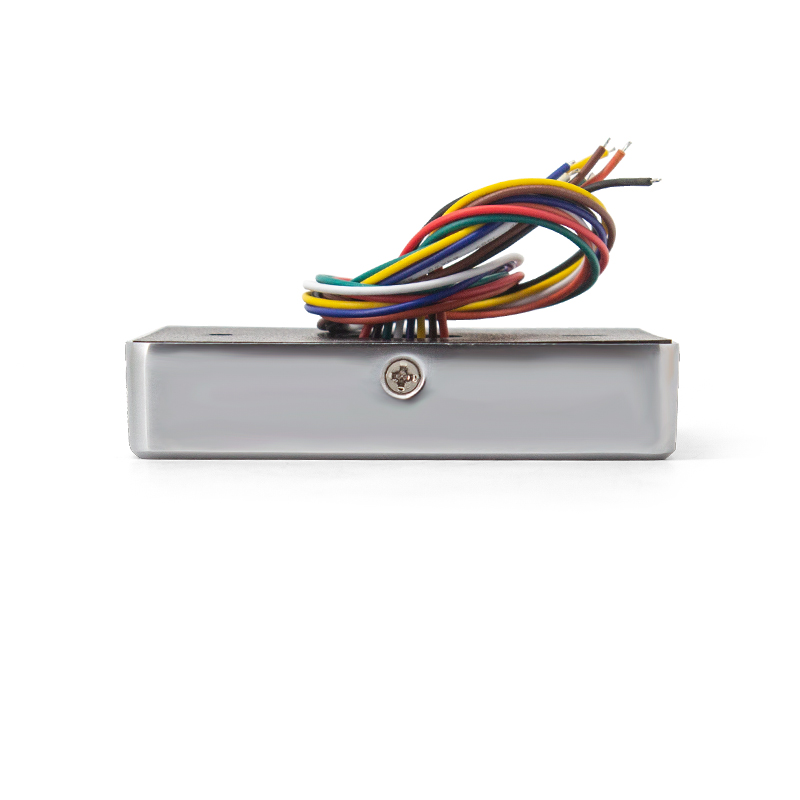

Model: R36
Frequency: 125Khz/13.56Mhz
Interface: Wiegand 26/34/RS232/RS485/TTL
Support cards: EM card or Mifare card
Barcode type: QR, 1D,2D code
Introduction: R36 QR code + RFID access control reader is a new generation of multifunctional reader developed by our company. The appearance of this product adopts the standard 86 box industry standard. It has fast scanning speed, high recognition rate, strong compatibility, and can be connected to any Wiegand input. The controller is suitable for various application scenarios. At present, it is widely used in business office building visitor entry management, scenic tourist staff management, community visitor entry and exit management, administrative hall access control management, supporting gates, access control, visitor machines, smart homes, etc.; it is a perfect upgrade for traditional credit card systems in various industries.
- Parameters
- Pictures
- Downloads
| project | parameter |
| Card reader type | EM card or Mifare card |
| Barcode type | QR, one/two-dimensional code |
| Decoding mode | Image decoding |
| communication method | Wiegand 26/34/RS232/RS485/TTL |
| Scan code characteristics | Automatic induction, buzzer prompt |
| Reading direction (bar code) | Angle 45° with the lens as the center point |
| Reading speed | ＜200ms |
| Card reading distance (card) | 3~6CM |
| Reading distance (QR code) | 0-20cm |
| Operating Voltage | 8-12V |
| Working current | 800mA |
| Operating temperature | -20℃~70℃ |
| Working humidity | 10%~90% |
| Material quality | Zinc alloy frame + acrylic panel |
| Size | 86mm×86mm×18mm |
| Weight | 150G |
| operating system | WindowsXP/7/8/10), Linux |
| Indicator light | Blue work light, green feedback light |
