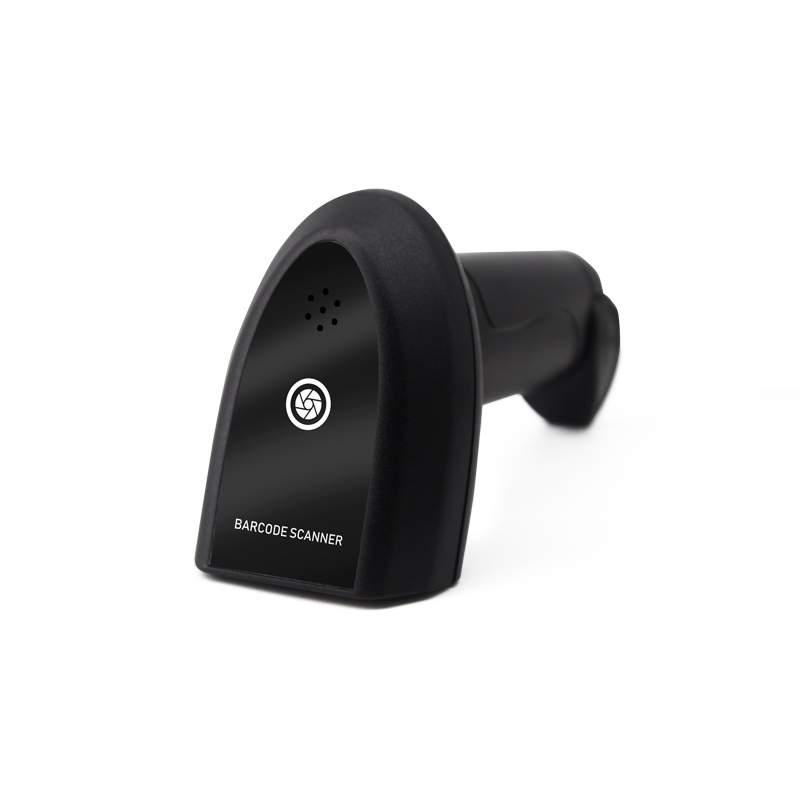

Model: U5-WC
Scan pattern: CCD
Interface: USB wired / Wireless 2.4g / Bluetooth
Introduction: Universal handheld 1D barcode scanner, using the international advanced photoelectric conversion technology, with two-way communication instant error correction feedback, to complete a variety of commonly used one-dimensional code reading. It can be used in different lighting environments and has strong applicability. Read faster and operate more efficiently. Support the reading of paper barcodes and anti-color barcodes; support the reading of non-standard barcodes such as printing distortion and wrinkle damage. Support screen code reading. Support remote online upgrade.
- Parameters
- Dimensions
- Donwloads
| Battery capacity | 2000mA |
| Wireless distance | 50-80 meters |
| Wireless storage | 5000-20000 depending on the number of characters |
| Wireless standby | 30 days |
| Wireless continuous operation | More than 72 hours |
| Transfer mode | 2.4G wireless, USB charging cable can be used as wired transmission data |
| The type of light source | Red led |
| Scanning speed | 200 ± 2 times per second |
| Scan accuracy | ≥4mil |
| Read depth of field | EAN-13 60mm-160mm (13mil). Code39 50mm-80mm (5mil 10 bytes). CODE128 30mm-180mm (20mil 16 bytes). Code39 40mm-90mm (6.67mil 7 bytes). |
| elevation | 55° |
| Angle | 55° |
| Decoding capability | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 |
| Supported interfaces | Printer USB port |
| Prompt mode | Buzzer LED |
| Scan mode | Manual Solid |
| Dimensions | Length× width× height: 150mm×67mm×98mm |
| weight | NW:171g; GW:250g |
| Material | ABS+PC |
| Cable standards | Straight line: 1m |
| voltage | 5V |
| Operating current | 400mA |
| Quiescent current | 36mA |
| Operating temperature | 0℃-45℃ |
| Storage temperature | -20℃-60℃ |
| humidity | Relative humidity 5%-95% (non-condensing) |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand an aerial drop of 1.5m |
