Model: MSR-400
Swipe: two-track
Interface: USB wired
Support cards: ISO7811-7815

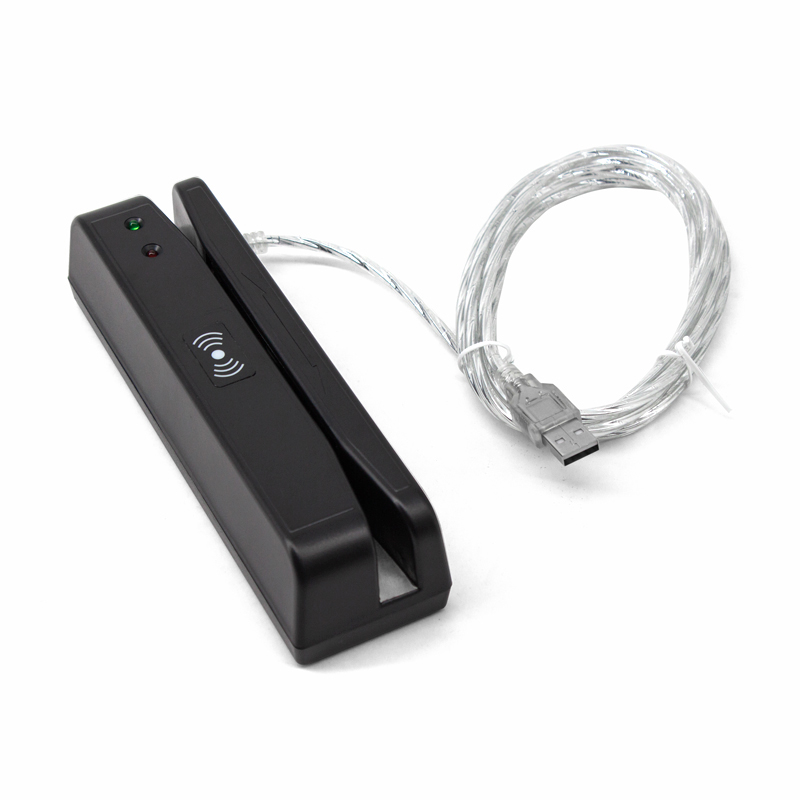

Introduction: The MSR-400 single two-track card reader is one of the magnetic card reading equipment series developed by our company, which is specially used for reading and transmitting magnetic card information. This product uses F2F decoding magnetic card, which integrates magnetic card decoding and data transmission functions, supports two-way swiping operation, and can read the information card of the second track of the magnetic card. Fully comply with ANSI/ISO technical standards, with keyboard emulation or RS-232 serial output. Application areas: Banking system, POS system, ID authentication, member management system and query system and other fields
- Parameter

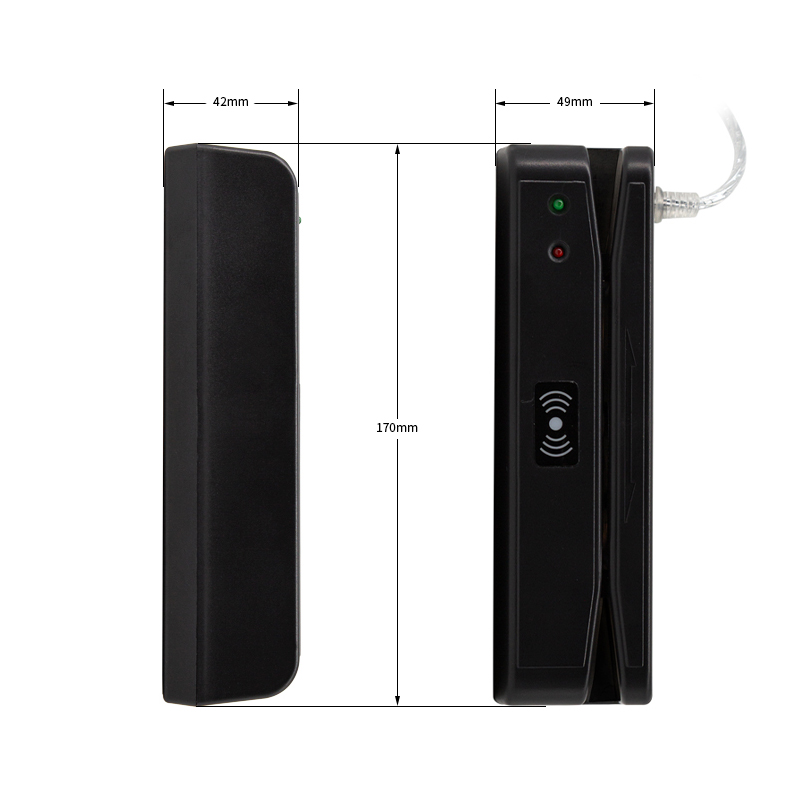

- Dimensions
| project | parameter |
| Card standard | ISO7811-7815 |
| interface | USB |
| Decoding method | F2F(FM) |
| Pull card speed | 0-120cm/s |
| Head life | 600,000 times |
| tracks | Second track |
| Support card type | Magnetic stripe cards |
| Swipe | two-way |
| Working voltage | DC5V±5% |
| Working current | ≤35mA |
| Working temperature | 0℃~+45℃ |
| Working humidity | 10%~90%RH |
| Card thickness | PVC 0.76±0.08mm |
| Read track width | 1.5mm |
| Line length | 1350mm |
| material | ABS |
| Dimensions | 170mm×42mm×49mm |
| Packing size | 190mm×50mm×140mm |
| Weight | NW 167.2g GW 240g |
| Recognizable translation code | Code39 Code93 UPCEAN Codeabar Interleabed 2 of 5 |
| operating system | Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android |
| Other | Status indicator: 2-color LED (“red” power LED, “green” status indicator) Built-in horn: buzzer, can control LED and buzzer |
