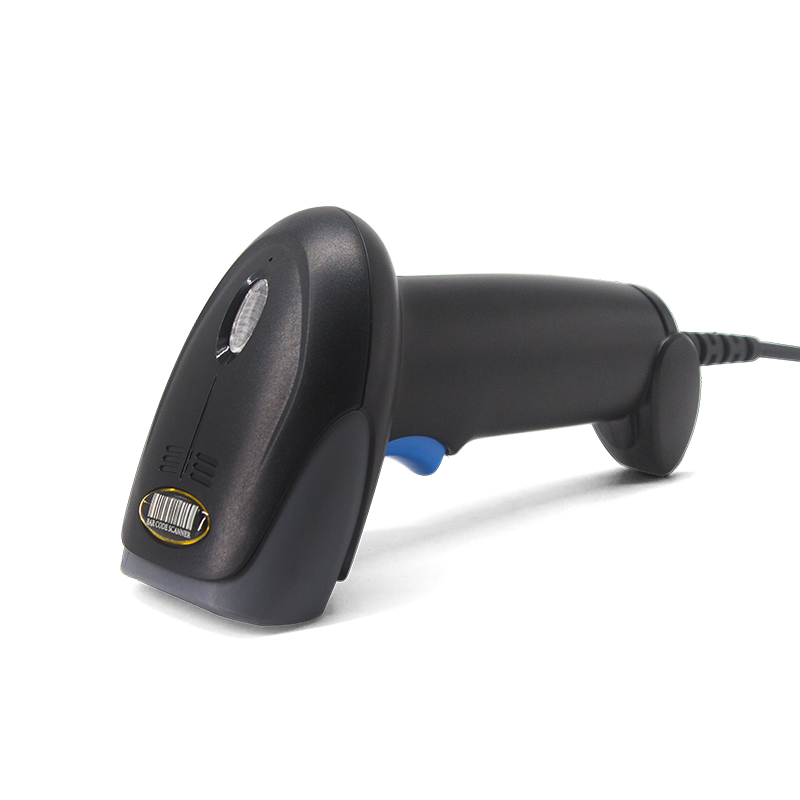

Model: U8
Scan pattern: CMOS
Interface: USB wired
Introduction: General-purpose handheld image 2D barcode scanner, using internationally advanced global exposure image transmission technology, with two-way communication instant error correction feedback, has a very high scanning rate for linear barcodes, and its 2D imaging speed is also more than five times of traditional scanning engines. It's easy to scan for both paper barcodes and barcodes on the display, making it easy to handle a variety of scanning applications.
- Parameters
- Dimensions
- Donwloads
| Input voltage | DC 5 volts ± 0.25 volts |
| power | 1.60 watts (working); 0.40 watts (standby). |
| current | 320 mA (operating); 80 mA (standby) 5 +/-10% VDC @ 350 mA |
| sensor | Global Exposure CMOS |
| resolution | 640 × 480 pixels |
| Transfer mode | USB charging cable as wired transmission data |
| Support code system | 1D: EAN- 13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar， Code 128，Code93，ITF- 14，ITF-6，Interleaved 2 of 5， Industrial 2 of 5，Matrix 2 of 5，GS1 Databar(RSS)，Code 39， Code 11，MSI-Plessey，etc 2D: QR Code，Data Matrix，PDF417，Micro PDF417，Micro QR， Aztec ，etc |
| Prompt mode | Buzzer, LED indicator |
| System interface | RS-232 serial port; USB keyboard; USB virtual serial port |
| Trigger mode | Manual, Auto-Sensing Mode, Continuous Scanning Mode |
| Exterior dimensions | Length× width× height: 165mm×67mm×97mm |
| weight | 180g (without cable). |
| Cable standards | Straight line, 1 6 meters |
| The interface type | One-piece line |
| Shell material | PC+ABS |
| Temperature | 0°C to 50°C (operating); -40°C to 60°C (storage). |
| Humidity | 5% to 95% (non-condensing). |
| How to set up | Manual (scan and set up barcodes in turn) |
| Symbolic contrast | ≥15% |
| Read accuracy | QR code 3MIL(Code39,CODE128,EAN13), QR code 5MIL(QR, DM, PDF417) |
| Typical reading depth of field | QR （15mil） 30~210mm QR Payment Code (Mobile Code) 80~550mm Data Matrix （10mil） 30~ 140mm PDF 417 （6.7mil） 50~ 120mm EAN- 13 （13mil） 50~280mm Code 39 （8mil） 30~ 190mm Code 128 （15mil） 80~320mm |
| Barcode sensitivity | Pitch±60° Tilt360° Deflection (skew)±60° |
