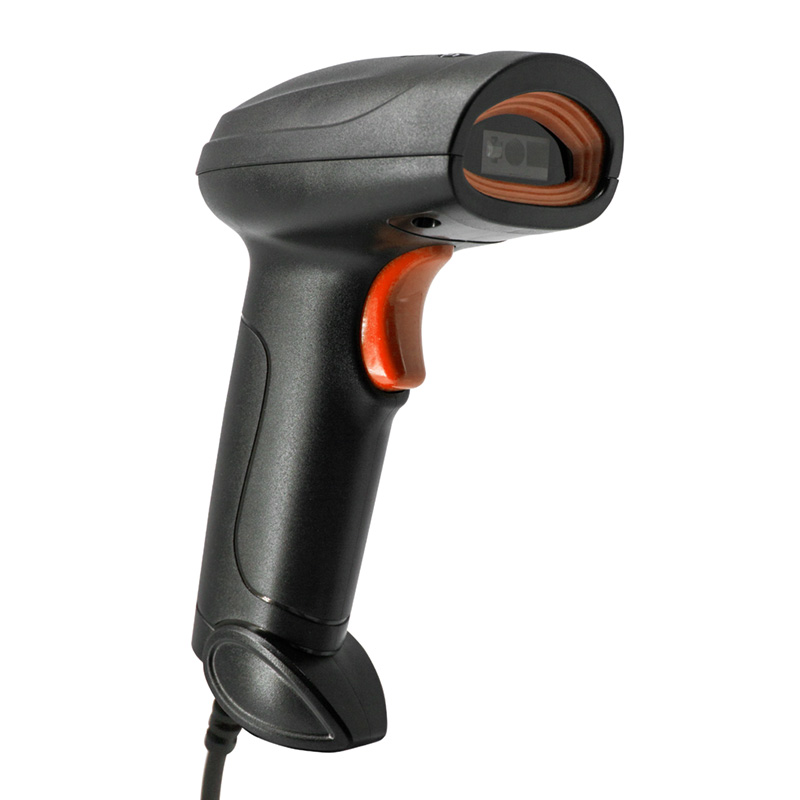

Model: U12
Scan pattern: CMOS
Interface: USB wired
Introduction: Universal handheld image 2D barcode scanner, using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Equipped with auxiliary lighting, can be used in different lighting environments, can also be used at night, the applicability is strong. Read barcodes in any direction at 360degrees, faster and more efficient. Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage.
- Parameters
- Dimensions
- Donwloads
| The input voltage | DC 5V ± 0.25V |
| Power. | 1.75W (working);0.65W (standby). |
| Current. | 130-350 mA |
| Resolution. | 640 × 480 pixels |
| Scan angle | ± 60°, ± 60°, ± 360° (Deflect, tilt, rotate) |
| The type of decoding | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K |
| How to prompt | Buzzer, LED |
| The system interface | RS-232 serial port; USB keyboard; USB virtual serial port |
| How it was triggered | Manual. |
| Appearance size | Long × width× height: 160mm × 66mm × 90mm |
| Weight. | 178g (without cable). |
| Cable standard | Straight line,1.6 meters |
| The type of interface | One-in-one line |
| Shell material | PC+ABS |
| Temperature | 0°C ~ 50°C (working); -40°C ~ 60°C (storage) |
| Humidity | 5% to 95% (no condensation). |
| How to set it up | Manual (scan to set barcodes in turn) |
| Resolution | 3.5mil (high density series),1mil s 0.0254mm |
| Read depth of view | 3.5mil: Code128(9 characters). 15mm—35mm 5mil: Code39(20 characters). 33mm—77mm 13mil: UPC (12 characters). 17mm—150mm 20mil: Code39 (5 characters). 55mm—195mm 6.7mil:PDF417(20 characters). 25mm—90mm 10mil:DM (20 characters). 15mm—115mm 20mil: QR (20 characters). 9mm—175mm |
| Level of security | EMC Electromagnetic Compatibility: EN55022, EN55024 Electrical safety: EN60950-1 Waterproof and dust-proof seal rating: IP54 Seismic capacity:5 or more times 1.5 meters of height fell to the cement floor |
