Model: R50
Scan pattern: CMOS
Interface: USB wired

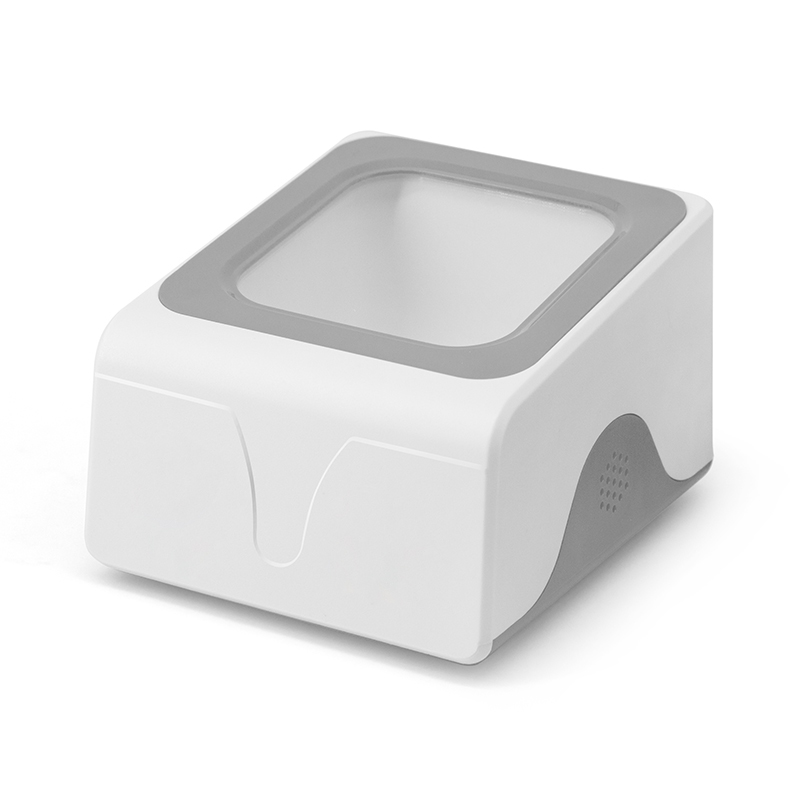

Introduction: R50 is a high-performance 2D barcode fixed platform scanner produced by our company. It has the ability of fast decoding and high-precision reading. It can recognize both 1D barcode and 2D barcode. It supports voice broadcasting, and can better meet the current mobile payment scanning, mobile devices, computer screens, etc. Multi function scanning, fast scanning, powerful reading performance and high accuracy.
- Parameters
- Dimensions
- Downloads
| Physical parameters | |
| Scan mode | Auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard, USB-COM virtual serial port |
| Prompt mode | Speaker, scan setting on or off |
| How it is set up | Manually scan the setup codes one after the other |
| Housing material | ABS+PC |
| Cable standard | Straight line 1.3m |

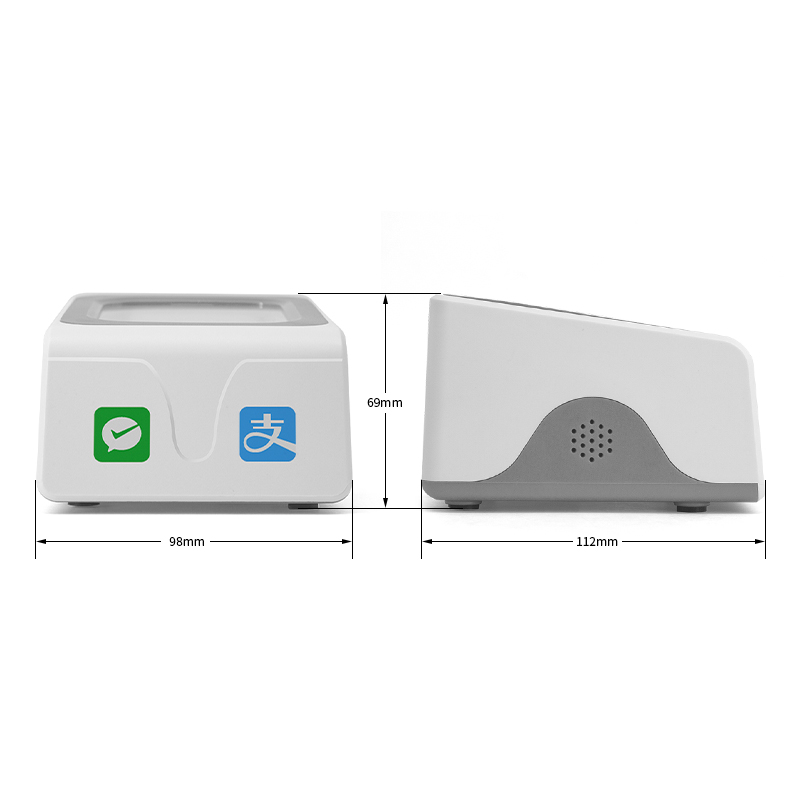

| Exterior dimensions | 112mm×69mm×98 mm |
| Weight | 189g |
| Performance parameters | |
| Scan type | CMOS |
| Resolution | 640*480 |
| Light source | White LED |
| Decoding kind | C ode39 C ode128 C odabar C ode93 EAN13 i25 GS 1 Databar QRcode |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Operating current | 2 00 mAh |
| Environment parameters | |
| Temperature | 0°C-50°C (working); -20°C~+60°C (storage). |
| Humidity | 5%-85% non-condensing |
